SSTP Cat6a Network Ethernet Lan Cable 500MHz 10 Gigabit , Bare Copper



Quick Detail:

1 High Quality 4pair Cat56a SSTP Lan Cable,500MHz ,23awg.

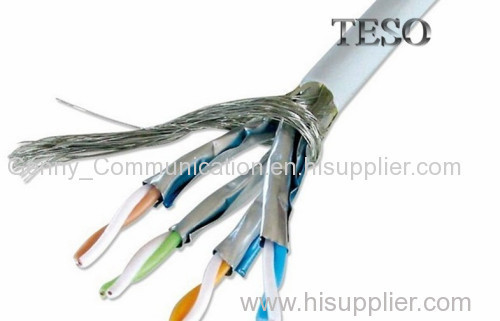

2.Structure: Bare copper conductor +HDPE insulation+ AL-Foil +Drain wire(customized)+ Braided shield + Jacket

3. Conductor: 1/0.575mm Bare copper , soft annealed bare copper.

4.Insulation: America Dow's HDPE

5.Outer jacket: PVC,LSZH,CMR,CMP are available and any color will be optional.

6.Test :Pass fluke test and with 25 years quality warranty.

Application

TESO Category 6A SSTP cables exceed TIA/EIA-568-B.2-10 Category 6A and ISO/IEC 11801:2002 Class EAperformance requirements by significant margins on all parameters.

The TESO Category 6A System complies with all of the performance requirements for current and proposed applications such as 10 Gigabit Ethernet, Gigabit Ethernet (1000BASE-Tx), 10/100BASE-Tx, token ring, 155 Mbps ATM, 100 Mbps TPPMD, ISDN, analog and digital video and analog and digital voice (VoIP).

Specification

Conductor                                 bare copper AWG 23/1, massive

Insulation                                  HDPE, ca. 1.37 mm outer Ø

Core identification code            acc. to IEC 708-1

Pair screening                           plastic laminated aluminium foil

Pair                                           4 pairs

Screening                                 braid of copper wire, tinned wire 0,10 mm

Outer sheath                             PVC, LSZH PVC ,CMR, outer Ø: ca. 7.4 mm

Electrical properties at 20° C

Resistance (loop)                      max. 150 Ω/km, acc. to VDE 0812

Insulation resistance                 min. 5 GΩxkm

Mutual capacitance                    nom. 45 nF/km

Characteristic impedance          100 Ω ±5 Ω

(at 100 MHz)

Velocity of propagation              ca. 0.79 c

Signal propagation time            <425 ns/100m

Delay difference                      <5 ns/100m

Screening attenuation               >75 dB

(up to 600 MHz)

Test voltage                               700 V (AC)

Cat6a SSTP shielded Twisted Pair Cable, Bulk cable Transmission properties

Mechanical and thermal properties
